Equipment Introduction

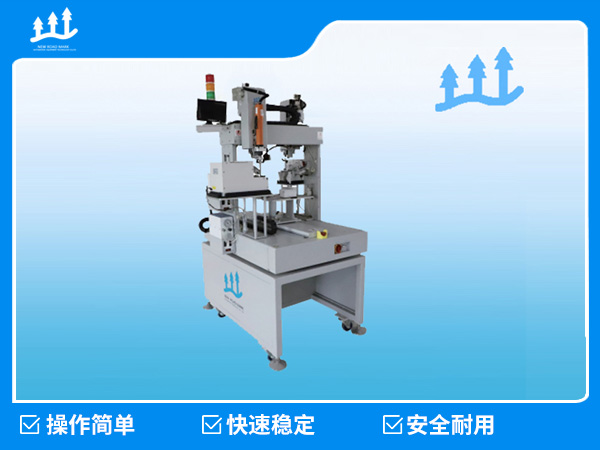

XLB-S21T desktop screw locking machine is an automated production equipment used to replace traditional manual tightening of screws and improve production efficiency.

Equipment features
1： High efficiency
① The XLB-S21T desktop screw locking machine adopts duplex fully automatic alternating operation, and the machine can work continuously. When locking the workpiece on one workbench, it can be loaded on the other workbench, which is safe, convenient, fast, and efficient;

② Semi automated mode can also be used, which means pressing a switch to start one workstation, and then starting another workstation after completion;

③ One machine can store programming for one hundred sets of products, and can easily convert product processing at any time, making it convenient and fast;

④ The feeding system is complete and has the function of automatically processing stuck materials, so there will be no stuck material phenomenon.

2： High stability
The equipment body adopts CNC integrated processing, and the base adopts thick steel plate structure, which lowers the center of gravity and makes it more stable; The wide and thick cast aluminum structure of the X-axis column has strong rigidity, effectively ensuring the verticality of XYZ, strong stability, and improving the machining accuracy of the equipment.

3： High precision
The XLB-S21T desktop screw locking machine uses VAV precision linear modules for the X-axis and Y-axis, which can automatically compensate for belt tension, adjust pre pressure to achieve zero gap between guide rails, and has high repeatability and no reverse positioning.

4： High reliability
The XLB-S21T desktop screw locking machine adopts linear modules for the X, Y, and Z axes, and the main part of the guide rail is made of high-strength, high straightness aluminum profiles. There are special steel rails inside the profile to ensure mechanical strength and long-term parallelism. The slider is designed with eccentric nuts and anti loosening features, and the slider can be adjusted for tightness.

Equipment parameters

Equipment name	XLB-S21T desktop screw locking machine
Equipment size	830*650*800mm(L*W*H)
Working Size	300(X)*400(Y)*90(Z)
Lock payment speed	Average<1.8S/piece
Screw removal method	Suction type
positioning accuracy	&plusmn; 0.05mm
Drive mode	Precision stepper synchronous belt
control mode	PLC touch screen
additional function	Leak proof lock, sliding teeth, floating height (optional) automatic detection function
Electrical requirements	Power supply 220VAC, gas source 0.4-0.8MPa
Screw range	M1.4~M4

equipment performance
1. The desktop automatic screw machine achieves continuous circulation flow operation through multiple workstations.

2. Product placement, screw locking, testing, and unloading are carried out simultaneously. Greatly improve production efficiency while saving multiple workers

3. The screw machine is fed by a vibrating disc and a precision sorting mechanism, ensuring stable screw feeding and low failure rate

4. The multi axis automatic screw locking machine arranges multiple screw locking heads according to the position of the workpiece screw. After the workpiece is fixed in place by the fixture, multiple axes lock the screws together at the same time. No matter how many axes there are, the screwing cycle is the same as locking one screw.

5. Adopting an industrial control system, the human-machine interface is simple and easy to operate.

6. Screw shortage detection alarm system.

7. Two different models of products have screw position adjustment function.

8. Sending and screwing screws are carried out synchronously, with extremely high efficiency.

9. Simple structure and stable performance


Application industry
Home appliances, electronic products, instruments and meters, toys, power supplies, furniture LED 、 Communication, computer keyboard, etc
