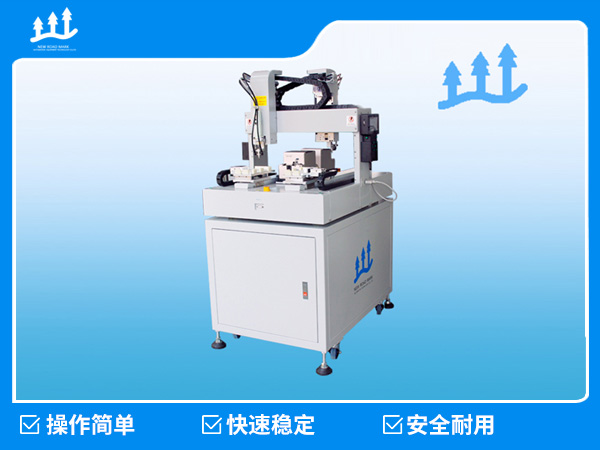

Dual electric screwdriver, single track, supports two different types of screws and different torque locking attachments;
Support pre process insertion and post process extraction, achieving low-cost operation without dedicated personnel;
Speed and stability are at the leading level in the industry, with an average of 1.3-1.5 seconds per screw
Machine size: 930mm (L) * 650mm (W) * 800mm (h)
Working size: 350 (L) * 500 (W) * 140 (h)
Drive mode: stepper motor servo motor
Positioning accuracy: ± 0.02mm
Drive structure: slide synchronous belt
Program storage: supports 100 products
Control system: High end PLC touch screen control system
Screw processing method: vacuum suction
Supplier model: HIOS or Quicher
Electric batch model: HIOS or other
Air pressure: 0.4-0.8MPA
Weight: 90 kilograms
