1: The XLB-S12T-L/MAX automatic screw locking machine adopts a single electric batch, dual tracks, and the product picking and placing time is parallel to the locking time, with high efficiency.
2: Support pre process insertion and post process extraction, achieving low-cost operation without dedicated personnel.
3: The speed and stability of XLB-S12T-L/MAX automatic screw locking machine are at the leading level in the industry, with an average of 1.3-1.5 seconds per screw.
4: Universal fixture design makes the equipment widely applicable and enhances its value.
5: The device supports two types of robotic arm automatic material retrieval, sliding arm and belt line methods.
6: The device supports copying programs for USB memory (USB flash drive) models.
7: The XLB-S12T-L/MAX automatic screw locking machine supports automatic detection and alarm for missing locks, slipping teeth, and floating height.

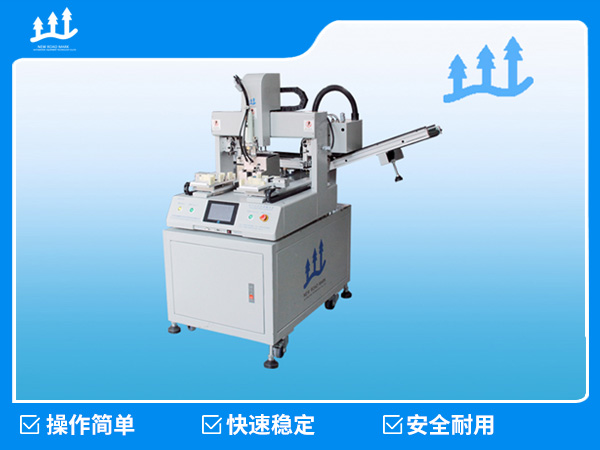

Equipment Name: XLB-S12T-L/MAX Automatic Screw Locking Machine
Machine size: 650mm (L) * 650mm (W) * 700mm (h) (- L) 650mm (L) * 800mm (W) * 700mm (h) (- Max)
Working size: 185 (L) * 250 (W) * 110mm (h) (- L) 250 (L) * 300 (W) * 110mm (h) (- Max)
Drive mode: stepper motor servo motor
Positioning accuracy: 0.02mm
Drive structure: slide synchronous belt
Program storage: supports 100 products
Control system: High end PLC touch screen control system
Screw processing method: vacuum suction
Supplier model: HIOS or Quicher
Electric batch model: HIOS or other
Air pressure: 0.4-0.8MPA
Weight: 70kg (- L) 1 75kg (- Max)
