Model Features

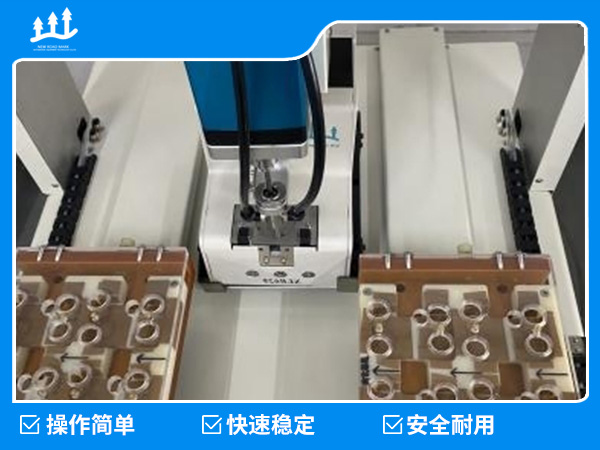

Single electric batch, dual platform structure
Parallel product retrieval and locking time for higher efficiency
Two modes can be freely set: front loading, front loading, and back loading
Equipment usage
Suitable for screw locking of various consumer electronic products, such as mobile phones, cordless phones, calculators, navigators, speakers, cameras, laptops, tablets, learning machines, smart home appliances, toys, etc.

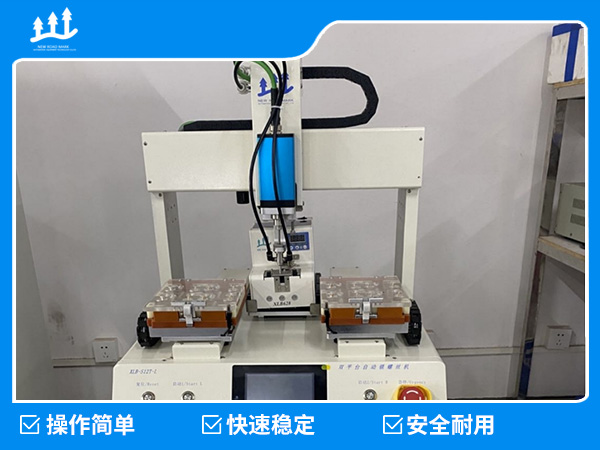

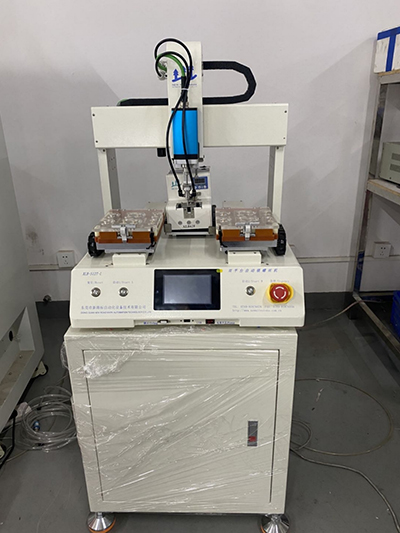

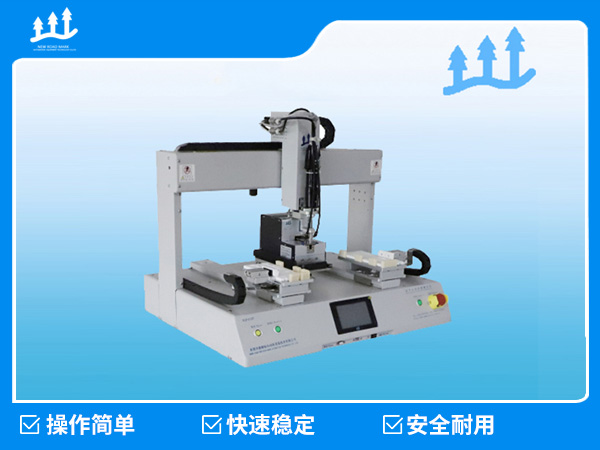

Equipment Name: XLB-S12T Desktop Screw Machine
Equipment size: 650 * 550 * 650mm (L * WH)
Working size: 130 (X) * 200 (Y) * 60 (Z)
Lock payment speed: average<1.8S/piece
Screw removal method: suction type
Positioning accuracy:± 0.05mm
Driving mode; Precision stepper synchronous belt
Control mode: PLC touch screen
Equipped with leak proof lock, sliding teeth, and floating height (optional) automatic detection function
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa
Screw range: M1.4-M4
