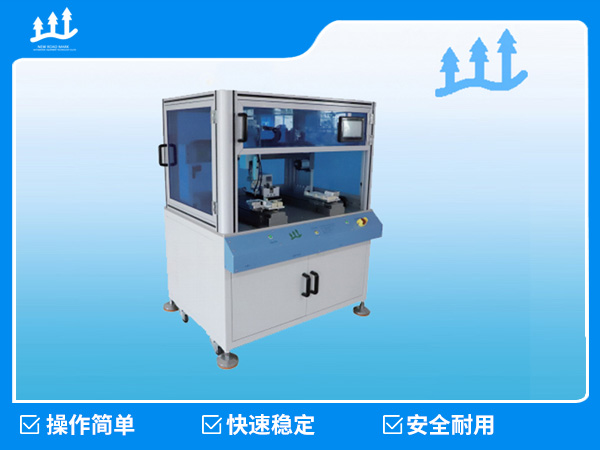

1: The XLB-S12T floor mounted automatic screw locking machine adopts a single electric batch and dual platform structure.
2: The device supports oversized products.
3: The XLB-S12T floor standing automatic screw locking machine can be placed in front and taken out, or placed in front and taken out, with two modes freely set.
Equipment name: XLB-S12T floor mounted automatic screw locking machine
Equipment size: 860 * 1100 * 1450mm (L * W * H)
Working size: 350 (X) * 350 (Y) * 90 (Z)
Lock payment speed: average<2.0S/piece
Screw removal method: suction type
Positioning accuracy:± 0.02mm
Driving mode; Imported servo screw
Control mode: PLC touch screen
Equipped with leak proof lock, sliding teeth, and floating height (optional) automatic detection function
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa
Screw range: M1.4-M4
