1: The XLB-S21T (back-to-back) desktop automatic screwing machine adopts a dual electric screwdriver and dual platform structure.
2: The device supports two different types of screws and different torque locks. When locking one type of screw, both sides can work independently at the same time.
3: The device has two modes: front loading and front unloading, and front loading and rear unloading, which can be freely set.
4: The XLB-S21T (back-to-back) desktop automatic screwing machine is equipped with an independent electrical control box for easy maintenance.

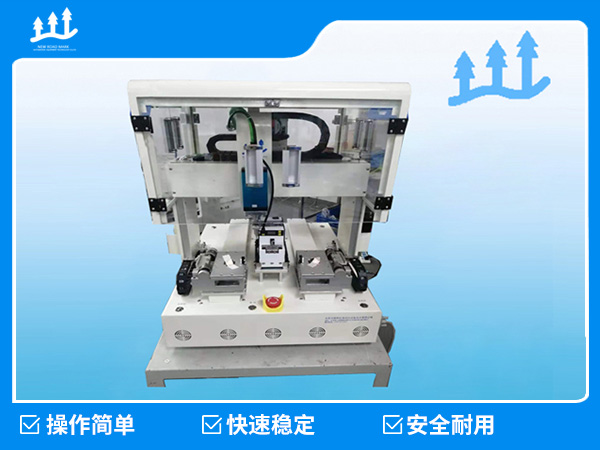

Equipment name: XLB-S21T (back-to-back) desktop automatic screwing machine
Equipment size: 1030 * 750 * 1330mm (L * W * H)
Working size: 200 (X) * 500 (Y) * 90 (Z)
Single head locking speed: average<1.2S/piece;
Screw removal method: suction type;
Positioning accuracy: t 0.02mm; .
Drive mode: precision stepper synchronous belt;
Control mode: PLC touch screen;
Equipped with leak proof lock and sliding teeth Floating height (optional) automatic detection function;
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa;
Screw range: M1.0-M40
