Equipment Introduction

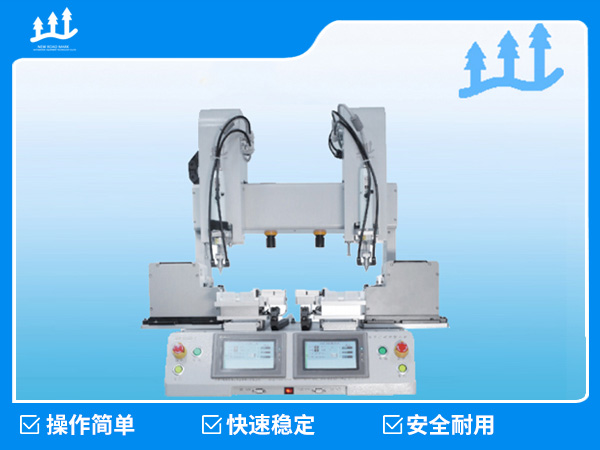

The XLB-S11TD desktop automatic screw tightening machine is an automated production equipment used to replace traditional manual tightening of screws and improve production efficiency.

Equipment features

2： High stability
1: The XLB-S11TD desktop automatic screw tightening machine adopts a dual electric screwdriver and dual platform structure.

2: The device can work independently on both left and right platforms simultaneously, with short X-axis travel and faster speed

3: The XLB-S11TD desktop screw machine has two modes: front loading and front unloading, and front loading and rear unloading, which can be freely set


Equipment parameters

Equipment name	XLB-S11TD Desktop Automatic Screwing Machine
Equipment size	830*650*800mm(L*W*H)
Working Size	300(X)*400(Y)*90(Z)
Lock payment speed	Average<1.8S/piece
Screw removal method	Suction type
positioning accuracy	&plusmn; 0.05mm
Drive mode	Precision stepper synchronous belt
control mode	PLC touch screen
additional function	Leak proof lock, sliding teeth, floating height (optional) automatic detection function
Electrical requirements	Power supply 220VAC, gas source 0.4-0.8MPa
Screw range	M1.4~M4

equipment performance
The XLB-S11TD desktop automatic screw tightening machine achieves continuous circulation flow operation through multiple workstations.

2. Product placement, screw locking, testing, and unloading are carried out simultaneously. Greatly improve production efficiency while saving multiple workers

3. The screw machine is fed by a vibrating disc and a precision sorting mechanism, ensuring stable screw feeding and low failure rate

4. The XLB-S11TD desktop automatic screwing machine arranges multiple locking screw heads according to the position of the workpiece locking screw. After the workpiece is fixed in place by the fixture, multiple axes are locked together at the same time. Regardless of how many axes there are, the screwing cycle is the same as locking one screw.

5. Adopting an industrial control system, the human-machine interface is simple and easy to operate.

6. Screw shortage detection alarm system.

7. Two different models of products have screw position adjustment function.

8. Sending and screwing screws are carried out synchronously, with extremely high efficiency.

9. Simple structure and stable performance


Application industry
Home appliances, electronic products, instruments and meters, toys, power supplies, furniture LED 、 Communication, computer keyboard, etc
