1: The XLB-S22T desktop dual electric screwdriver adopts a dual electric screwdriver and dual platform structure
2: The device supports two different types of screws and different torque locks. When locking one type of screw, both sides can work independently at the same time
3: XLB-S22T desktop dual electric screwdriver can be placed in front and taken out, or placed in front and taken out, with two modes to be freely set

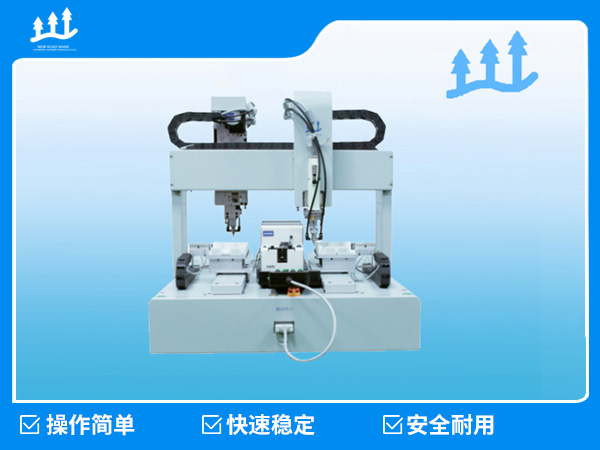

Equipment Name: XLB-S22T Desktop Double Electric Batch Screw Locking Machine
Equipment size: 930 * 650 * 700mm (L * WH)
Working size: 180 (X) * 500 (Y) * 60 (Z)
Lock payment speed: average<1.8S/piece
Screw removal method: suction type
Positioning accuracy:± 0.05mm
Driving mode; Precision stepper synchronous belt
Control mode: PLC touch screen
Equipped with leak proof lock, sliding teeth, and floating height (optional) automatic detection function
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa
Screw range: M1.4-M4
