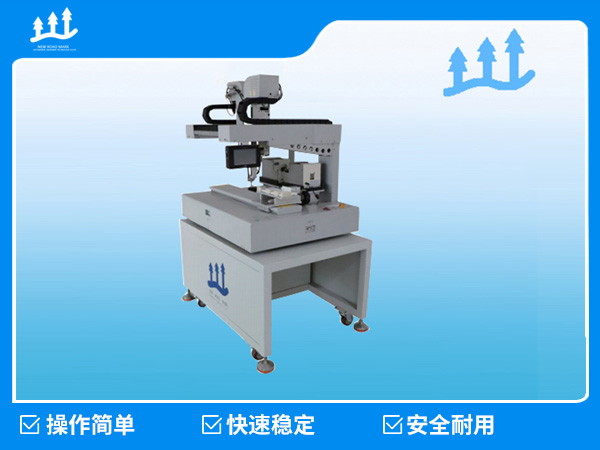

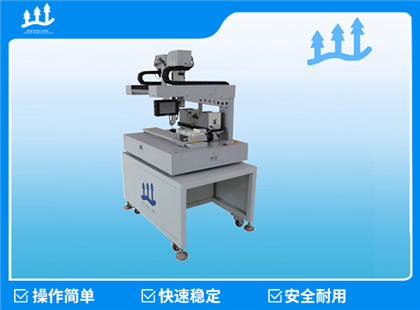

XLB-S21T (face-to-face) desktop screw locking machine supports two different types of screws and different torque locking
1: The XLB-S21T (face-to-face) desktop screw locking machine adopts a cantilever, dual electric batch, and single platform structure.
2: The device supports two different types of screws and different torque locking.
3: XLB-S21T (face-to-face) desktop screw locking machine can be placed in front and taken out, or placed in front and taken out, with two modes freely set.
Equipment Name: XLB-S21T (Face to Face) Desktop Screw Locking Machine
Equipment size: 830 * 650 * 800mm (L * W * H)
Working size: 300 (X) * 400 (Y) * 90 (Z)
Lock payment speed: average<1.8S/piece
Screw removal method: suction type
Positioning accuracy:± 0.05mm
Driving mode; Precision stepper synchronous belt
Control mode: PLC touch screen
Equipped with leak proof lock, sliding teeth, and floating height (optional) automatic detection function
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa
Screw range: M1.4-M4
