1: Install two electric screwdrivers on the Z-axis of XLB-S12T double head blowing screw machine and lock them at the same time.
2: It is suitable for products that require screw spacing fixation (≥ 50mm) and balanced locking force
3: The XLB-S12T double head blowing screw machine has two modes: front loading and front unloading, and front loading and rear unloading, which can be freely set

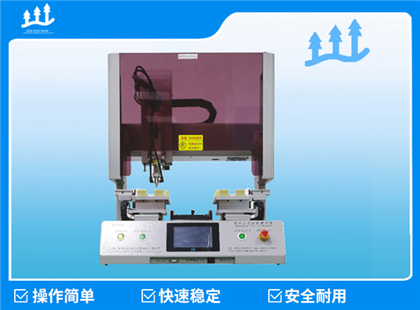

Equipment Name: XLB-S12T Double Head Blowing Screw Machine
Equipment size: 650 * 650 * 700mm (L * W * H)
Working size: 180 (X) * 200 (Y) * 100 (Z)
Lock payment speed: average<2.2S/piece
Screw removal method: blowing type
Positioning accuracy:± 0.05mm
Driving mode; Precision stepper synchronous belt
Control mode: PLC touch screen
Equipped with leak proof lock and automatic detection function for slipping teeth
Electrical requirements: power supply 220VAC, gas source 0.4-0.8MPa
Screw range: M2-M4
